Labelers

High-Speed Automatic Label Applicators for Precision and Efficiency

EAM’s Delta Labelers are engineered to meet the demands of modern manufacturing environments, offering high-speed, precise, and reliable labeling solutions. Designed for various applications, including RFID, RF, graphic labels, hangtags, coupon labels, and AM EAS labels, these labelers ensure consistent and accurate label placement, enhancing product presentation and compliance.

Message a Specialist

Delta Key Features and Specifications

• High-Speed Operation: Achieves rates up to 550 tags per minute, accommodating high-volume production needs.

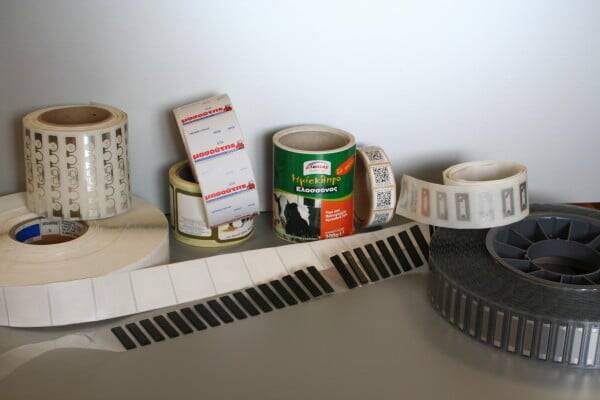

• Versatile Label Compatibility: Supports a wide range of labels, including RFID, RF, graphic labels, hangtags, coupon labels, and AM EAS labels.
• Modular Design: Features a modular setup for flexible mounting of the label head, unwind, take-up, and control box, allowing customization to fit specific production lines.
• Advanced Triggering and Speed Matching: Equipped with encoder triggers and speed matching capabilities to synchronize with production line speeds, ensuring accurate label placement.
• Multi-Head Control: Supports multi-head control, enabling the operation of multiple labelers from a single controller, increasing throughput and redundancy.
• Compact and Intelligent: Designed to be compact for easy integration into existing production lines, with intelligent features for efficient operation.
• Built-in Features: Includes encoder trigger, skip, and speed matching functionalities for seamless integration and operation.
• Mounting Options: Offers various mounting stands, including floor stands and adjustable versions, to accommodate different production environments.

Delta Labeler Spec Sheet

Technical Specifications

• Weight: Approximately 25 lbs (11.3 kg), depending on options.
• Drive Type: Micro-Stepper web drive system for high-speed repeatability.
• Power Requirements: 120 VAC, Single Ø, < 3 Amp; 85 PSI (5.8 bar), < 2CFM (56 lpm).
• Machine Dimensions: Height: 17.8″ (450 mm), Width: 7.6″ (193 mm), Depth: 9.9″ (250 mm).
• Remote Enclosure Dimensions: Height: 10″ (254 mm), Width: 12″ (305 mm), Depth: 6″ (152 mm).
• Maximum Rate Speed: Up to 550 tags per minute, depending on stroke and tag type.
• Tamp Head Stroke Range: 15 mm (min) to 40 mm (max); longer strokes available on request.
• Web Width: 1.5″ (38 mm) Min. to 3.5″ (89 mm) Max.; wider web available on request.

Applications Across Industries

EAM’s Delta Labelers are ideal for a wide range of applications, including:

• Retail: Applying RFID and EAS labels to products for inventory management and loss prevention.
• Pharmaceuticals: Labeling bottles and packages with regulatory-compliant labels.
• Food and Beverage: Attaching nutritional information and barcodes to packaging.
• Electronics: Applying serial numbers and compliance labels to devices.
• Logistics: Labeling shipping containers and pallets for tracking and identification.

Case Study: Doubling Production Speeds with EAM’s Multi-Head Controller

Problem: Customer needs to increase equipment efficiency and rate to meet increased volume requirements and reduce costs.

Application: An existing EAM customer who produces folding cartons had a very high-volume product that required higher production speeds and increased efficiencies, resulting in lower costs and increased profit margins. Several EAM Mini ST Delta label applicators were used to apply EAS (anti-theft, loss prevention) tags. The current production speed using one applicator was 28K parts per hour (466 PPM).

Solution: To increase production speeds, EAM offered a standard product offering known as a “Multi-head controller (MHC)”. This unit can control as many as six different applicators or high-speed labelers. This customer used 3 EAM Mini ST Delta’s together on one folder gluer to increase line speed to 48k parts per hour while adding “true redundancy”. Two high-speed label applicators would alternate at a rate of 400PPM to achieve a total of 48k parts per hour while the third applicator was in a ready state, waiting for one of the first two applicators to be switched off to complete a roll change. Production was doubled, and downtime was reduced by utilizing the existing lines with our industrial high-speed labeling machines.

Why Choose EAM’s Delta Labelers?

EAM’s Delta Labelers stand out due to their combination of high-speed performance, compact size, versatility, and ease of integration. Their robust design and user-friendly interface make them a reliable choice for businesses seeking to enhance their labeling processes.

Ready to Enhance Your Labeling Process?

If you’re looking to improve the efficiency and accuracy of your labeling operations, EAM’s Delta Labelers offer the ideal solution. Call us today at 207-283-3001 or contact us online to discuss your specific requirements and discover how our labeling systems can benefit your business.

Frequently Asked Questions

What labeling applications are supported by EAM labelers?

EAM labelers support front-and-back, wraparound, and specialty labeling applications for products, cartons, and packaging. They are designed for accuracy and repeatability in demanding production environments.

Are EAM labelers compatible with different label materials and shapes?

Yes, EAM labelers handle paper, film, die-cut, and specialty label materials across various sizes and shapes. This flexibility supports frequent changeovers and diverse product lines.

Can EAM labelers be integrated with existing conveyors or automation lines?

EAM labelers are engineered to integrate smoothly with both new and existing conveyor systems. This minimizes installation time and disruption to ongoing operations.

Do EAM labelers support real-time quality checks and verification?

Labelers can be equipped with inspection systems to verify label placement, orientation, and print quality. This helps ensure compliance and reduce costly labeling errors.
